Zinc-Alume Storage Tanks
WEE Tech Provides A Range Of Zinc-Alume Liquid Storage Tanks For All Types Of Liquids In Commercial, Private And Government Sector. The Tanks Are Beautifully Designed, Carefully Engineered And Flawlessly Erected To Provide The Most Efficient Service To Our Clients. These Tanks Are Used Across Various Industries Having Various Applications. WEE Tech Has Been Working In Water And Energy Sector For More Than 5 Years And Hence We Deeply Care About The Quality Of Your Water. Zinc-Alum Tanks Guarantee Safe And Sustainable Solution For The Storage Of Water With 25years Of Warrantee. We Can Provide Tanks With Capacities Varying From 15000L To 1500000 L Customised As Per Your Requirement. Moreover, The Tanks Are Designed As Per American Water Works Association (AWWA) And Comply With All The International Standards.
The Positioning of Tanks
- Ground storage reservoir
- Elevated storage reservoir
Zinc-Alume Tanks Features
- These tanks are prefabricated, pre-engineered & site assembled bolted-panel tanks.
- The outer shell have superior zincalume coating (zinc: aluminum: silicon) in multiple layer which enhance the self-life of tank.
- The aluminum in the coating provides barrier protection to the steel whilst the zinc component provides sacrificial cut edge protection.
- The superior quality of food grade reinforced, heavy duty PVC liner secures the potable water for longer durations.
- Cathodic protection with magnesium anodes provides an enhanced life.
- Tanks to have provision for rain water harvesting for high rainfall zones to store in tank with food grade liners.
- Sizes from 15,000 Litres to 700000 Litres.
Advantages over RCC Tanks
- The tanks are very fast to build compared to RCC tanks and made ready to store water.
- Durable and easily relocated. multiple tanks staging possible in clusters.
- Light in weight and can be installed on elevated location above ground.
- Tanks are supported by manufacturer’s warranty and design for the 15 years of service life.
- Adaptable to different sites with Different Dia. X height combinations.
Major Components:
Liner
- Zinc-Alume tanks are lined with the finest quality material to make the tank leak proof and also to keep the water healthy and fresh. Our liner are made from food grade fibre reinforced PVC. The polyester scrim adds extra strength to the liner making is shear and puncture resistant, thus avoiding leakage of water and lesser maintenance. The liner is protected from puncture by the geotextile spread at the bottom of the tank making it more durable.

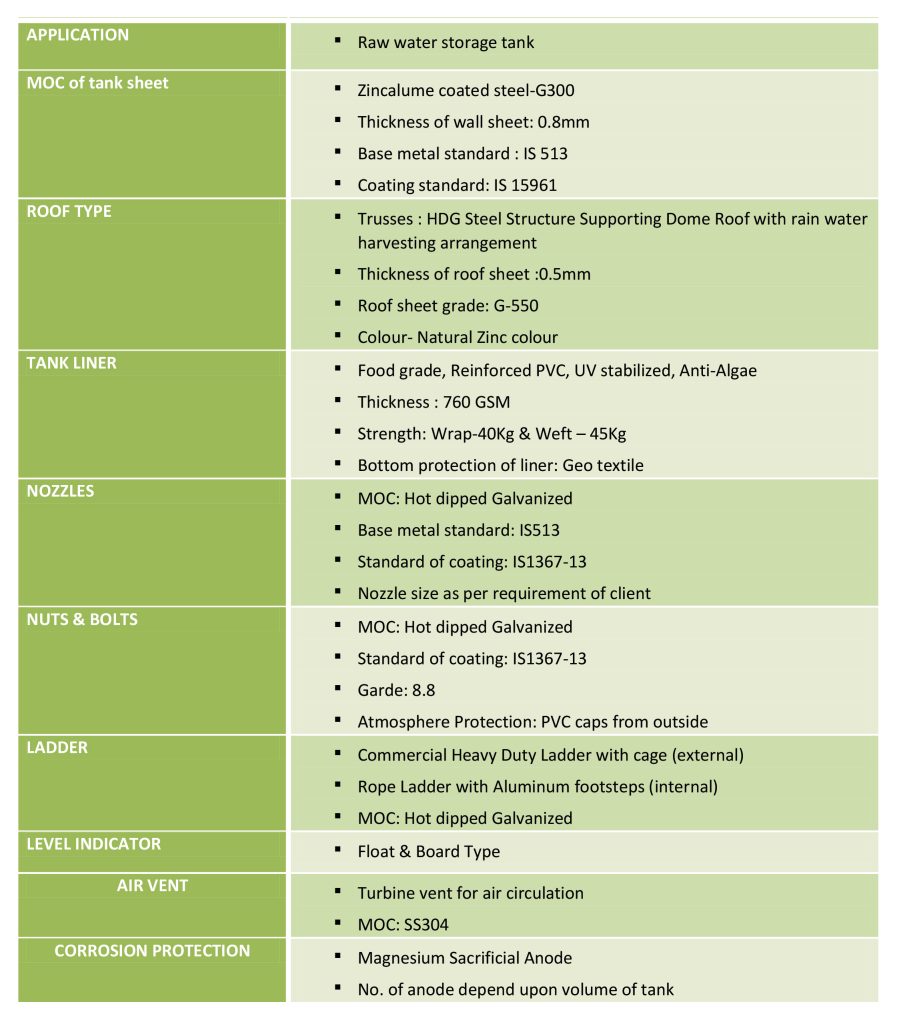

Liner Specifications
- PVC/PE reinforced
- 760 GSM onwards
- 0.8 mm thick
- Food Grade
- Anti-Algae
- UV Stabilised
- PVC can be permanently bonded to the multifilament woven scrim.
- Shear resistant
- Puncture resistant
- High tensile strength
- Tested by NABL approved lab for food grade and super chlorination
Zincalume Panels
These Tanks Are Manufactured From Highest Quality Zincalume Tata Bluescope Steel. Zincalume Is An Alloy Of 43.5 % Zinc And 55% Aluminium And 1.5% Silicon Which Has More Strength Than Galvanised Steel. Zincalume Provides Excellent Corrosion Resistance And Resistance To Peeling And Cracking Under Varying Climatic Conditions.

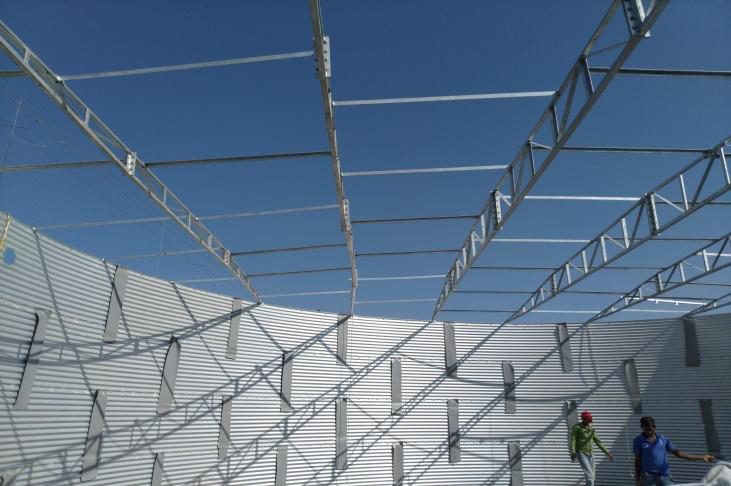

Trusses
- Our trusses are manufactured from highest quality Hot dip galvanized steel (IS 1367).We use superior and innovative soft wares and engineering expertise to design the trusses as they play a critical part in structural stability of the tanks.
Why Choose Us?
- The tanks are designed as per AWWA standards. the tanks are certified by recognised government engineering colleges in India.
- We provide complete solution from foundation to the structure erection.
- WeeTech engineers can provide customised tanks of varying capacities as per your need and specifications.
- Complimentary to storage of water tanks, we can also deliver purification of water using our state of the art chlorination technology.
